Notifying the Yankee (part 2) This time with the Clarify Client

Recently I posted about how to notify the yankee, meaning the person who a case was yanked from.

I showed how to make this happen within applications that use the Dovetail SDK (Dovetail Agent, Dovetail Mobile, etc.)

Now, lets see how we can accomplish the same task within the Clarify Classic Client.


Most of the setup is the same as I covered previously.

1. Turn the participant2user pseudo-relation into an exclusive relation

2. Setup a business rule recipient alias for the “Yanked From User”

3. Create a business rule that uses the “Yanked from User” as a recipient of a rule

4. Add the participant record

Add a Participant using ClearBasic

To add a participant record, we can add some ClearBasic code behind form 737, which is the Yank form.

Caution: this is an old-school C form, so much of the prescribed way of using CB code on this form doesn’t work. Especially around the Form_Save routines.

Here’s what I came up with:

Dim actEntryObjid As Long


  Function GetCurrentOwnerObjid() As Long

   Dim previousOwnerObjid As Long

   Dim lor As List

   Dim rec As Record

   Dim br As New BulkRetrieve

   Dim objectType As String

   Dim ownerRelation As String


   GetCurrentOwnerObjid = 0


   Select Case YANK_OBJ_TYPE.Text

   Case "Case"

     objectType = "case"

     ownerRelation = "case_owner2user"

   Case "Subcase"

     objectType = "subcase"

     ownerRelation = "subc_owner2user"

   End Select


   If Len(objectType) > 0 Then

     br.SimpleQuery 0, objectType

     br.AppendFilter 0, "id_number", cbEqual, EDT_5.Text

     br.TraverseFromParent 1, ownerRelation, 0


     Set lor = br.GetRecordList(1)

     If lor.Count > 0 Then

       Set rec = lor.ItemByIndex(0)

       previousOwnerObjid = rec.GetField("objid")

     End If

   End If


   GetCurrentOwnerObjid =  previousOwnerObjid

  End Function



  Sub Form_Load()


  End Sub



  Sub Form_Save2(bs As BulkSave)

   Dim recActEntry As Record


   If bs.CountByType("act_entry") > 0 Then

      Set recActEntry = bs.GetRecordByIndex(0,"act_entry")

      actEntryObjid = recActEntry.GetField("objid")

   End If


  End Sub


  Sub SaveParticipant(previousOwnerObjid As Long)

   Dim recP As New Record

   Dim bs As New BulkSave


   If actEntryObjid > 0 And previousOwnerObjid > 0 Then

      recP.RecordType = "participant"

      recP.SetField "role_code", 1

      bs.InsertRecord recP

      bs.RelateRecordsToID recP, "act_entry", actEntryObjid, "participant2act_entry"

      bs.RelateRecordsToID recP, "user", previousOwnerObjid, "participant2user"


   End If


  End Sub



  Sub YANK_BTN_Click()

   Dim previousOwnerObjid As Long


   previousOwnerObjid = GetCurrentOwnerObjid()




   SaveParticipant previousOwnerObjid


  End Sub

Normally, I would add the participant record within Form_Save1 or Form_Save2, but this didn’t work. It exhibited some really strange behavior and threw some gawd-awful OST subsystem errors. So, I punted, and just added it after the default behavior happened on the Yank button.

Also notice that I only added support for cases and subcases. If you want to support other object types, add them to the Select Case portion of the GetCurrentOwnerObjid function.

Lets give it a whirl

From the Clarify Classic Client, Yank a case:

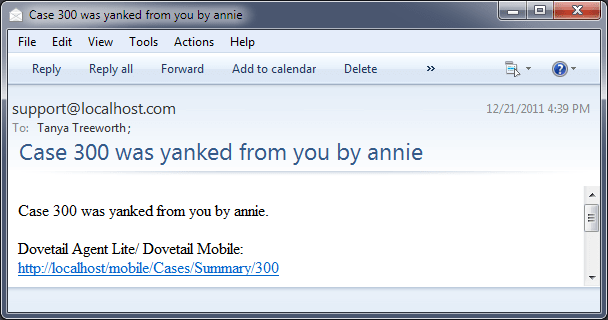

and then we should see an email notification come through:

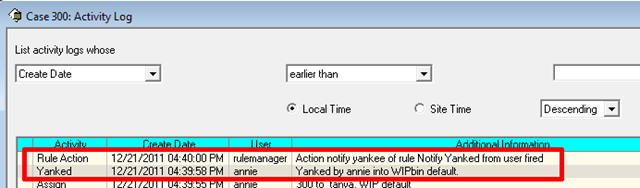

and we should see the Yank activity and the Business Rule action in the case activity log:



You may now continue yanking away (does that sound slightly naughty?). And the person you yanked from will be notified appropriately.

Hope you find this useful.

And that wraps up my blog posting for 2011. See you in 2012.

Rock on.
